基于idea创建配置ssm项目

时间：2020-06-27 14:47:26 类型：JAVA
字号： 小  中  大

基于idea创建配置ssm项目

一. 创建项目

   1,  File->New->Project


    2, Maven->maven-archetype-webapp->next

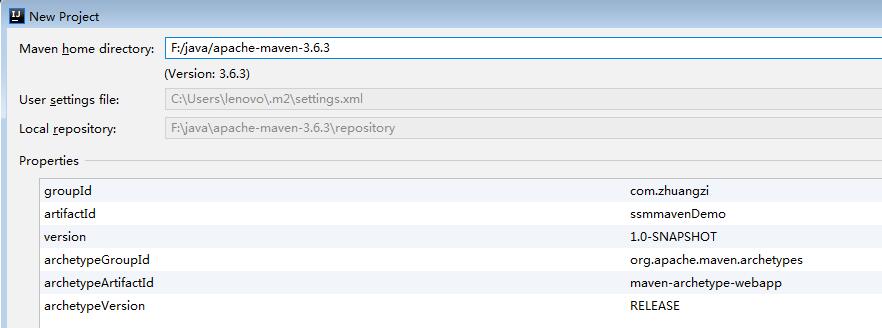

    3,     配置名称及artifactId等


4.  选择安装的maven或者使用默认的->Finished

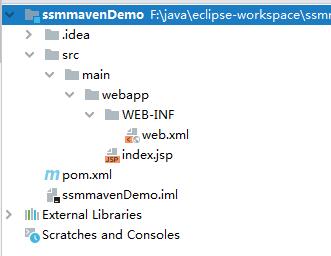

    4.jpg5. 生成默认目录如下:


二. 配置pom.xml, 下载文件见底部

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.zhuangzi</groupId>
  <artifactId>ssmmavenDemo</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>war</packaging>

  <name>ssmmavenDemo Maven Webapp</name>
  <!-- FIXME change it to the project's website -->
  <url>http://www.example.com</url>

  <properties>
    <spring.version>5.2.6.RELEASE</spring.version>
    <mybatis.version>3.5.5</mybatis.version>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.7</maven.compiler.source>
    <maven.compiler.target>1.7</maven.compiler.target>
  </properties>

  <dependencies>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.11</version>
      <scope>test</scope>
    </dependency>
    <!--java servlet包-->
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>javax.servlet-api</artifactId>
      <version>4.0.1</version>
      <scope>provided</scope>
    </dependency>
    <!--spring框架核心依赖包-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aop</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aspects</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-beans</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-core</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-expression</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-tx</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jms</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-orm</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jcl</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-web</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!--mybatis框架-->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>${mybatis.version}</version>
    </dependency>
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>2.0.5</version>
    </dependency>
    <!--mybatis分页使用-->
    <dependency>
      <groupId>com.github.pagehelper</groupId>
      <artifactId>pagehelper</artifactId>
      <version>5.1.11</version>
    </dependency>
    <dependency>
      <groupId>com.github.jsqlparser</groupId>
      <artifactId>jsqlparser</artifactId>
      <version>3.1</version>
    </dependency>
    <!--mybatis依赖框架-->
    <dependency>
      <groupId>org.ow2.asm</groupId>
      <artifactId>asm</artifactId>
      <version>8.0.1</version>
    </dependency>
    <dependency>
      <groupId>cglib</groupId>
      <artifactId>cglib</artifactId>
      <version>3.3.0</version>
    </dependency>
    <dependency>
      <groupId>commons-logging</groupId>
      <artifactId>commons-logging</artifactId>
      <version>1.2</version>
    </dependency>
    <dependency>
      <groupId>org.javassist</groupId>
      <artifactId>javassist</artifactId>
      <version>3.27.0-GA</version>
    </dependency>
    <dependency>
      <groupId>log4j</groupId>
      <artifactId>log4j</artifactId>
      <version>1.2.17</version>
    </dependency>
    <dependency>
      <groupId>org.apache.logging.log4j</groupId>
      <artifactId>log4j-api</artifactId>
      <version>2.13.3</version>
    </dependency>
    <dependency>
      <groupId>org.apache.logging.log4j</groupId>
      <artifactId>log4j-core</artifactId>
      <version>2.13.3</version>
    </dependency>
    <dependency>
      <groupId>ognl</groupId>
      <artifactId>ognl</artifactId>
      <version>3.2.14</version>
    </dependency>
    <dependency>
      <groupId>org.slf4j</groupId>
      <artifactId>slf4j-api</artifactId>
      <version>1.7.30</version>
    </dependency>
    <dependency>
      <groupId>org.slf4j</groupId>
      <artifactId>slf4j-log4j12</artifactId>
      <version>1.7.30</version>
      <scope>compile</scope>
    </dependency>
    <!--数据库驱动-->
    <dependency>
      <groupId>MySQL</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>5.1.40</version>
    </dependency>
    <!-- 导入dbcp的jar包，用来在applicationContext.xml中配置数据库 -->
    <dependency>
      <groupId>org.apache.commons</groupId>
      <artifactId>commons-dbcp2</artifactId>
      <version>2.7.0</version>
    </dependency>
    <dependency>
      <groupId>org.apache.commons</groupId>
      <artifactId>commons-pool2</artifactId>
      <version>2.8.0</version>
    </dependency>
    <!--文件上传-->
    <dependency>
      <groupId>commons-io</groupId>
      <artifactId>commons-io</artifactId>
      <version>2.7</version>
    </dependency>
    <dependency>
      <groupId>commons-fileupload</groupId>
      <artifactId>commons-fileupload</artifactId>
      <version>1.4</version>
    </dependency>
    <dependency>
      <groupId>commons-codec</groupId>
      <artifactId>commons-codec</artifactId>
      <version>1.14</version>
    </dependency>
    <!-- JSTL标签类 start -->
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>jstl</artifactId>
      <version>1.2</version>
    </dependency>
    <dependency>
      <groupId>taglibs</groupId>
      <artifactId>standard</artifactId>
      <version>1.1.2</version>
    </dependency>

    <dependency>
      <groupId>ueditor</groupId>
      <artifactId>ueditor</artifactId>
      <scope>system</scope>
      <version>1.0</version>
      <systemPath>${basedir}\src\lib\ueditor-1.1.2.jar</systemPath>
    </dependency>
    <dependency>
      <groupId>org.json</groupId>
      <artifactId>json</artifactId>
      <version>20200518</version>
    </dependency>
  </dependencies>


  <build>
    <finalName>mavenDemo02</finalName>
    <pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
      <plugins>
        <plugin>
          <artifactId>maven-clean-plugin</artifactId>
          <version>3.1.0</version>
        </plugin>
        <!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
        <plugin>
          <artifactId>maven-resources-plugin</artifactId>
          <version>3.0.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-compiler-plugin</artifactId>
          <version>3.8.0</version>
        </plugin>
        <plugin>
          <artifactId>maven-surefire-plugin</artifactId>
          <version>2.22.1</version>
        </plugin>
        <plugin>
          <artifactId>maven-war-plugin</artifactId>
          <version>3.2.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-install-plugin</artifactId>
          <version>2.5.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-deploy-plugin</artifactId>
          <version>2.8.2</version>
        </plugin>
      </plugins>
    </pluginManagement>
  </build>
</project>

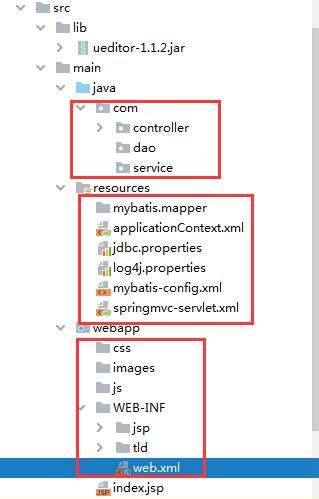

三. 配置applicationContext.xml,mybatis-config.xml,springmvc-servlet.xml,jdbc.properties,log4j.properties,web.xml

    applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:p="http://www.springframework.org/schema/p"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="
            http://www.springframework.org/schema/beans
            http://www.springframework.org/schema/beans/spring-beans.xsd
            http://www.springframework.org/schema/aop
            http://www.springframework.org/schema/aop/spring-aop.xsd
            http://www.springframework.org/schema/tx
            http://www.springframework.org/schema/tx/spring-tx.xsd
            http://www.springframework.org/schema/context
            http://www.springframework.org/schema/context/spring-context.xsd">
    <context:property-placeholder location="classpath:jdbc.properties"/>
    <!-- 引入配置文件 -->

    <!--配置数据源 -->
    <bean id="dataSource" class="org.apache.commons.dbcp2.BasicDataSource" destroy-method="close" scope="singleton">
        <property name="driverClassName" value="${database.driver}" />
        <property name="url" value="${database.url}" />
        <property name="username" value="${database.username}" />
        <property name="password" value="${database.userpwd}" />
        <property name="maxTotal" value="30" />
        <property name="maxIdle" value="10" />
        <property name="initialSize" value="5" />
    </bean>
    <!-- 添加事务支持 -->
    <bean id="txManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource" />
    </bean>
    <!-- 开启事务注解 -->
    <tx:annotation-driven transaction-manager="txManager" />
    <!-- 配置mybitas工厂，同时指定数据源，并与MyBatis完美整合 -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource" />
        <!-- 自动扫描mapping.xml文件 -->
        <property name="mapperLocations" value="classpath*:mybatis/mapper/*.xml" />
        <!-- configLocation的属性值为Mybatis的核心配置文件 -->
        <property name="configLocation" value="classpath:mybatis-config.xml" />
    </bean>
    <!-- Mapper代理开发，使用Spring自动扫描Mybatis的接口并装配 -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!-- mybatis-spring组件的扫描器 -->
        <property name="basePackage" value="com.dao" />
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory" />
    </bean>
    <!-- 指定需要扫描的包（包括子包），使注解生效。dao包在mybatis-spring组件中已经扫描，这里不在需要扫描 -->
    <context:component-scan base-package="com.service" />
</beans>

   mybatis-config.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration  PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <settings>
        <setting name="logImpl" value="STDOUT_LOGGING" />
    </settings>
    <typeAliases><!--别名-->
        <package name="com.pojo"/>
    </typeAliases>
    <!-- 配置分页插件 -->
    <plugins>
        <plugin interceptor="com.github.pagehelper.PageInterceptor">
            <!-- 设置数据库类型 Oracle,Mysql,MariaDB,SQLite,Hsqldb,PostgreSQL六种数据库-->
            <property name="helperDialect" value="mysql"/>
        </plugin>
    </plugins>

</configuration>

jdbc.properties

database.driver=com.mysql.jdbc.Driver
database.url=jdbc:mysql://localhost:3306/stu_info?characterEncoding=utf8
database.username=root
database.userpwd=root

lo4j.properties

# Global logging configuration
log4j.rootLogger=ERROR,stdout
# MyBatis logging configuration...
log4j.logger.com.mybatis=DEBUG
# Console output...
log4j.logger.com.ibatis=DEBUG
log4j.logger.com.ibatis.common.jdbc.SimpleDataSource=DEBUG
log4j.logger.com.ibatis.common.jdbc.ScriptRunner=DEBUG
log4j.logger.com.ibatis.sqlmap.engine.impl.SqlMapClientDelegate=DEBUG
log4j.logger.java.sql.Connection=DEBUG
log4j.logger.java.sql.Statement=DEBUG
log4j.logger.java.sql.PreparedStatement=DEBUG
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%5p [%t] - %m%n

springmvc-servlet.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:p="http://www.springframework.org/schema/p"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="
        http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/mvc
        http://www.springframework.org/schema/mvc/spring-mvc.xsd">
    <!-- 使用扫描机制扫描包 -->
    <context:component-scan base-package="com.controller" />
    <mvc:annotation-driven />
    <!-- annotation-driven用于简化开发的配置，注解DefaultAnnotationHandlerMapping和AnnotationMethodHandlerAdapter -->
    <!-- 使用resources过滤掉不需要dispatcherservlet的资源（即静态资源，例如css、js、html、images）。
        在使用resources时必须使用annotation-driven，否则resources元素会阻止任意控制器被调用 -->
    <!-- 允许css目录下的所有文件可见 -->
    <mvc:resources location="/css/" mapping="/css/**" />
    <!-- 允许html目录下的所有文件可见 -->
    <mvc:resources location="/js/" mapping="/js/**" />
    <!-- 允许css目录下的所有文件可见 -->
    <mvc:resources location="/images/" mapping="/images/**" />
    <!-- 允许vendor目录下的所有文件可见 -->
    <mvc:resources location="/vendor/" mapping="/vendor/**" />
    <!-- 完成视图的对应 -->
    <!-- 对转向页面的路径解析。prefix：前缀， suffix：后缀 -->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/jsp/" />
        <property name="suffix" value=".jsp" />
    </bean>
    <!-- 配置MultipartResolver，用于上传文件，使用spring的CommonsMultipartResolver -->
    <bean id="multipartResolver"
          class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
        <property name="maxUploadSize" value="50000000" />
        <property name="defaultEncoding" value="UTF-8" />
    </bean>
</beans>

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://java.sun.com/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
        http://java.sun.com/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">
  <jsp-config>
    <taglib>
      <taglib-uri>http://java.sun.com/jsp/jstl/fmt</taglib-uri>
      <taglib-location>/WEB-INF/tld/fmt.tld</taglib-location>
    </taglib>

    <taglib>
      <taglib-uri>http://java.sun.com/jsp/jstl/core</taglib-uri>
      <taglib-location>/WEB-INF/tld/c.tld</taglib-location>
    </taglib>

    <taglib>
      <taglib-uri>http://java.sun.com/jsp/jstl/sql</taglib-uri>
      <taglib-location>/WEB-INF/tld/sql.tld</taglib-location>
    </taglib>

    <taglib>
      <taglib-uri>http://java.sun.com/jsp/jstl/x</taglib-uri>
      <taglib-location>/WEB-INF/tld/x.tld</taglib-location>
    </taglib>

  </jsp-config>
  <display-name>ssmmavenDemo</display-name>
  <welcome-file-list>
    <welcome-file>index.jsp</welcome-file>
  </welcome-file-list>
  <!-- 实例化ApplicationContext容器 -->
  <context-param>
    <!-- 加载src目录下的 applicationContext-*.xml文件-->
    <param-name>contextConfigLocation</param-name>
    <param-value>classpath:applicationContext.xml</param-value>
  </context-param>
  <filter>
    <filter-name>encodingFilter</filter-name>
    <filter-class>
      org.springframework.web.filter.CharacterEncodingFilter
    </filter-class>
    <init-param>
      <param-name>encoding</param-name>
      <param-value>UTF-8</param-value>
    </init-param>
    <init-param>
      <param-name>forceEncoding</param-name>
      <param-value>true</param-value>
    </init-param>
  </filter>
  <filter-mapping>
    <filter-name>encodingFilter</filter-name>
    <url-pattern>/*</url-pattern>
  </filter-mapping>
  <servlet>
    <servlet-name>spring</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>classpath:springmvc-servlet.xml</param-value>
    </init-param>
    <load-on-startup>1</load-on-startup>
  </servlet>
  <servlet-mapping>
    <servlet-name>spring</servlet-name>
    <url-pattern>/</url-pattern>
  </servlet-mapping>
  <listener>
    <listener-class>
      org.springframework.web.context.ContextLoaderListener
    </listener-class>
  </listener>
</web-app>

四, 生成相应的目录如下:


下载配置文件:

pom及resources资源配置文件.zip

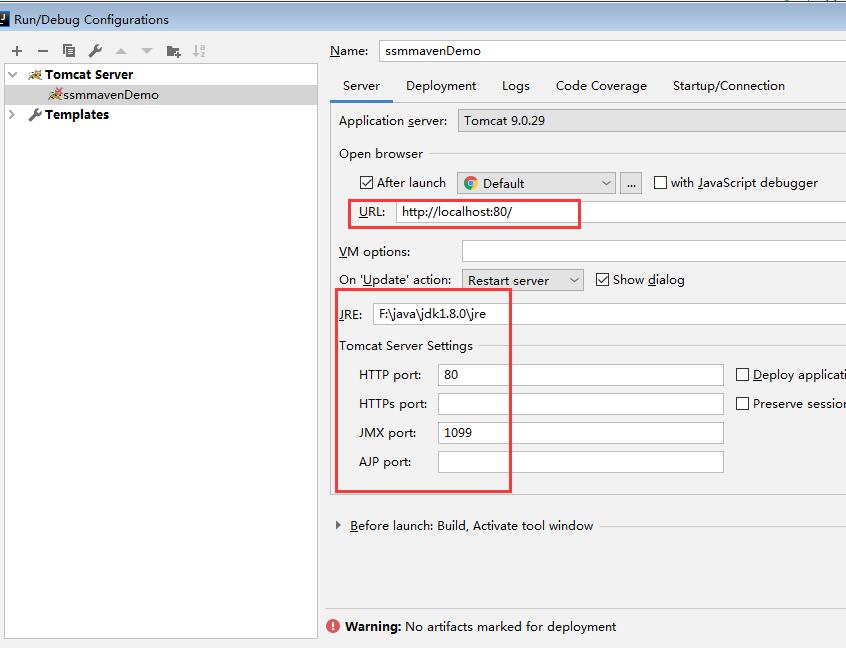

五. 配置tomcat

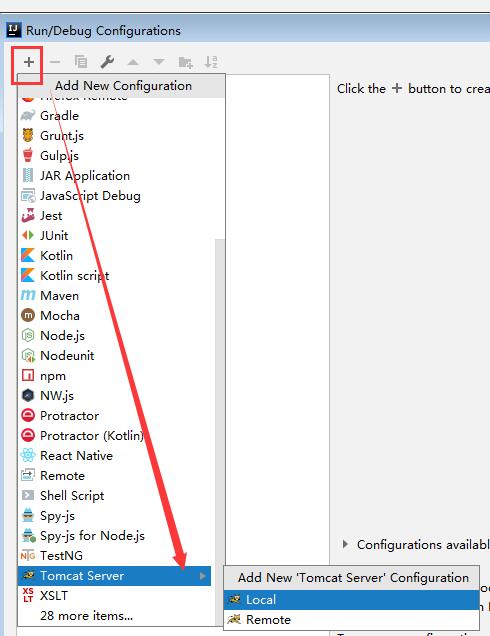

     右上角,选择Add configuration

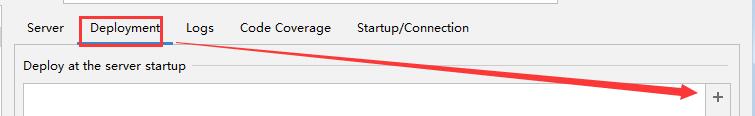

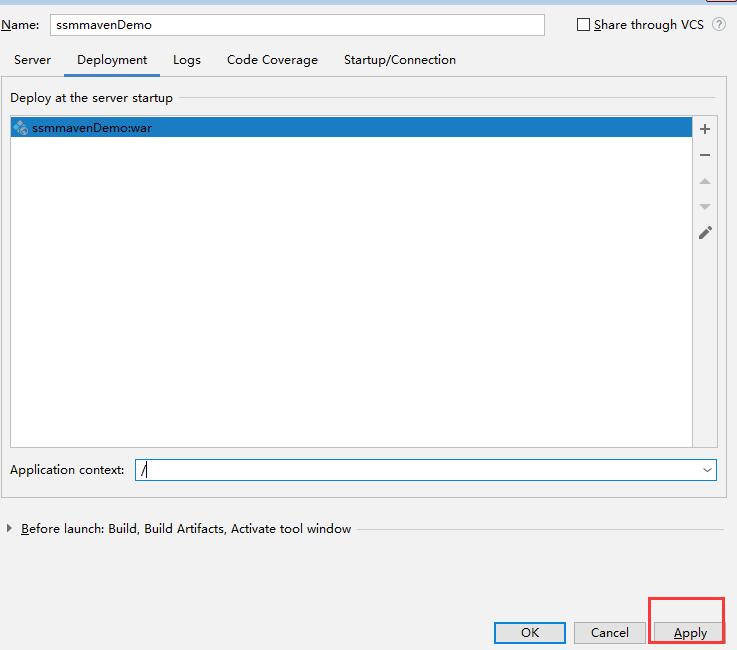

配置部署

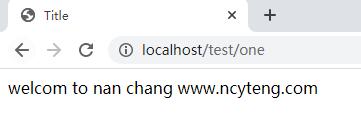

六, 创建控制器并进行访问:

@Controller
@RequestMapping("/test")
public class Test {
    @RequestMapping(value = "/one", method = RequestMethod.GET)
    public String one(){
      return "one";
    }
}


<
