基于resumable.js的切片上传大文件，且显示进度条(基于layui的进度条), 并结合后台使用springboot接收切片，合并切片的完整实例
1, 下载resumable.js 或使用 cdn引入js
可以到https://www.bootcdn.cn/resumable.js/ 下载
2, 前端代码 单个文件上传显示
<form class="layui-form" action="" lay-filter="addForm">
<div class="layui-form-item">
<label class="layui-form-label">文件上传</label>
<div class="layui-input-block">
<div class="layui-btn" id="uploadBigFile">
<i class="layui-icon layui-icon-upload"></i> 选择文件
</div>
<div class="layui-progress layui-hide" id="demo0" style="margin-top: 20px" lay-showPercent="true" lay-filter="file-upload-progress">
<div class="layui-progress-bar" lay-percent="0%"></div>
</div>
</div>
</div>
</form>
<script src="layui.js"></script>
<script src="resumable.js"></script>
<script>
layui.config({
base: '/vendor/layuiAdmin/res/' // 静态资源所在路径
}).use(function(){
let $ = layui.$
,layer = layui.layer
,element = layui.element;
//基于Resumable.js
const r = new Resumable({
target: '/uploadFile', // 后端分片上传接口
chunkSize: 1 * 1024 * 1024, // 分片大小（默认 1MB）
simultaneousUploads: 3, // 并发请求数
testChunks: false, // 不进行测试分块完整性检查，以提高性能
generateUniqueIdentifier: function(file) {
// 提供自定义的文件唯一标识符生成方法
return 'xxxxxxxx-xxxx-4xxx-yxxx-xxxxxxxxxxxx'.replace(/[xy]/g, function (c) {
var r = (Math.random() * 16) | 0,
v = c == 'x' ? r : (r & 0x3) | 0x8;
return v.toString(16);
});
}
});
r.assignBrowse(document.getElementById('uploadBigFile'));
// 文件添加到队列时触发
r.on('fileAdded', function(file){
console.log('File added', file);
$("#demo0").removeClass('layui-hide')
r.upload()
});
// 文件上传开始时触发
r.on('fileProgress', function(file){
// 渲染进度条组件
element.progress('file-upload-progress', Math.floor(file.progress() * 100) + '%'); // 设置 50% 的进度
//console.log('File progress', file.progress());
});
// 文件上传成功时触发
r.on('fileSuccess', function(file, message){
// console.log('File uploaded successfully', file, message);
let obj = JSON.parse(message)
console.log("新的文件名：" + obj.data)
});
// 文件上传失败时触发
r.on('fileError', function(file, message){
console.log('File upload error', file, message);
});
});
</script>3, 后台springboot控制器代码
@RestController
public class AdmUploadController {
//配置的上传目录
@Value("${web.uploadPath}")
private String uploadPath;
//接收分片文件上传
@PostMapping("uploadFile")
public R uploadFile(
@RequestParam("resumableChunkNumber") int chunkNumber,
@RequestParam("resumableTotalChunks") int totalChunks,
@RequestParam("file") MultipartFile chunk,
HttpServletRequest request) throws IOException {
//表单body和url都会传递以下两个参数，参数接收会拼接
String fileName = request.getParameter("resumableFilename");
String identifier = request.getParameter("resumableIdentifier");
// 目标文件路径，identifier是唯一的标识符，用于存储文件分片
String targetPath = uploadPath + identifier;
File uploads = new File(targetPath);
//创建临时文件夹
if (!uploads.exists()) {uploads.mkdirs();}
System.out.println(targetPath+"/"+fileName + "." + chunkNumber);
Path chunkPath = Paths.get(targetPath,fileName + "." + chunkNumber); // 分片文件路径
Files.copy(chunk.getInputStream(), chunkPath, StandardCopyOption.REPLACE_EXISTING);
// 保存分片到服务器
// 检查是否所有分片都已上传完毕，如果是，则合并分片文件到最终文件
if (chunkNumber == totalChunks) {
String newName = mergeChunks(targetPath, identifier, totalChunks,fileName); // 合并分片的方法实现见下文
return R.builder().msg("All upload success").code(200).data(newName).build();
// 所有分片上传完毕，返回成功消息或进行其他处理
} else {
return R.builder().msg("chunk upload success").code(200).build();
// 分片上传成功，返回成功消息或进行其他处理
}
}
private String mergeChunks(String targetPath, String identifier, int totalChunks,String fileName) throws IOException {
String suffix = fileName.substring(fileName.lastIndexOf("."));
String newName = UUID.randomUUID().toString().replace('-','_') + suffix;
File mergedFile = new File(uploadPath + newName);
// 最终存储路径并生成新的文件名
try (FileOutputStream fos = new FileOutputStream(mergedFile, true)) {
// 合并所有分片
for (int i = 1; i <= totalChunks; i++) {
File chunk = new File(targetPath + "/" + fileName + "." + i);
Files.copy(chunk.toPath(), fos);
chunk.delete(); // 删除临时分片
}
new File(targetPath).delete(); //删除临时存储切片的目录
System.out.println("合并成功");
} catch (IOException e) {
System.out.println("合并失败");
}
return newName;
}
//删除文件
@GetMapping("delFile")
public R delFile(String fileName){
File file = new File(uploadPath + fileName);
file.delete();
return R.builder().msg("del success").code(200).build();
}
}
@Data
@Builder
public class R {
private String msg;
private int code;
private String data;

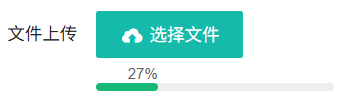

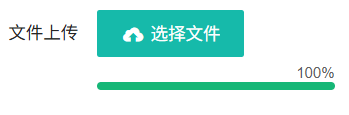

}实际效果:

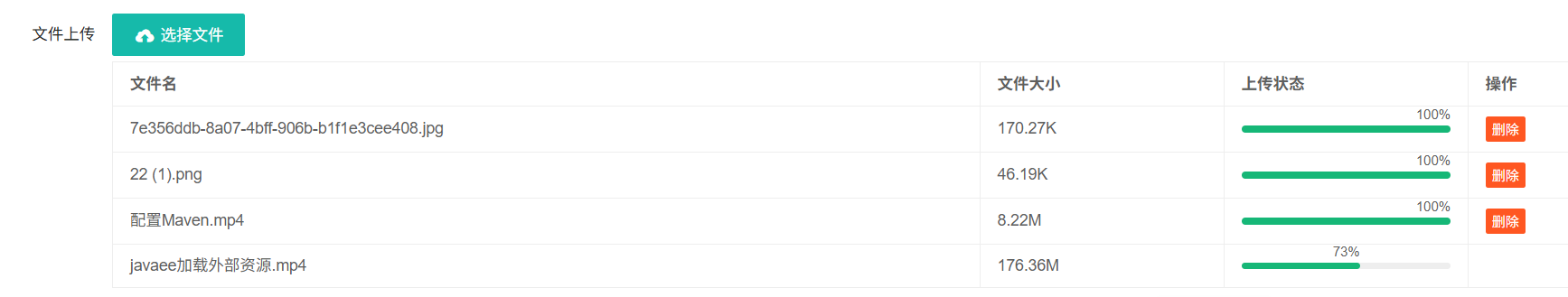

3, 前端代码 多个文件上传显示
<form class="layui-form" action="" lay-filter="addForm"> <div class="layui-form-item"> <label class="layui-form-label">文件上传</label> <div class="layui-input-block"> <div class="layui-btn" id="uploadBigFile"> <i class="layui-icon layui-icon-upload"></i> 选择文件 </div> <table class="layui-table" id="file-list"> <thead><tr><th>文件名</th><th>文件大小</th><th>上传状态</th><th>操作</th></tr></thead> <tbody> </tbody> </table> <div class="layui-progress layui-hide" id="demo0" style="margin-top: 20px" lay-showPercent="true" lay-filter="file-upload-progress"> <div class="layui-progress-bar" lay-percent="0%"></div> </div> </div> </div> </form>
<script src="/vendor/layuiAdmin/res/layui/layui.js"></script>
<script src="/vendor/resumable.js"></script>
<script>
layui.config({
base: '/vendor/layuiAdmin/res/' // 静态资源所在路径
}).use(function(){
let $ = layui.$
,layer = layui.layer
,element = layui.element;
//基于Resumable.js
const r = new Resumable({
target: '/adm/uploadFile', // 后端分片上传接口
chunkSize: 2 * 1024 * 1024, // 分片大小（默认 1MB）
simultaneousUploads: 3, // 并发请求数
testChunks: false, // 不进行测试分块完整性检查，以提高性能
generateUniqueIdentifier: function(file) {
// 提供自定义的文件唯一标识符生成方法
return 'xxxxxxxx-xxxx-4xxx-yxxx-xxxxxxxxxxxx'.replace(/[xy]/g, function (c) {
var r = (Math.random() * 16) | 0,
v = c == 'x' ? r : (r & 0x3) | 0x8;
return v.toString(16);
});
}
});
r.assignBrowse(document.getElementById('uploadBigFile'));
// 文件添加到队列时触发
r.on('fileAdded', function(file){
console.log('File added', file);
let strTr = `<tr>
<td>${file.fileName}</td>
<td>${getfilesize(file.file.size)}</td>
<td>
<div class="layui-progress" lay-showPercent="true" lay-filter="${file.file.uniqueIdentifier}">
<div class="layui-progress-bar" lay-percent="0%"></div>
</div>
</td>
<td>
<input type="hidden" name="files" data-original="${file.fileName}" data-size="${getfilesize(file.file.size)}" id="${file.file.uniqueIdentifier}">
<button type="button" class="layui-btn layui-bg-red layui-hide ${file.file.uniqueIdentifier} layui-btn-xs del_file">删除</button>
</td>
</tr>`
$("#file-list > tbody").append(strTr)
element.render('progress', file.file.uniqueIdentifier);
r.upload()
});
// 文件上传开始时触发
r.on('fileProgress', function(file){
// 渲染进度条组件
element.progress(file.file.uniqueIdentifier, Math.floor(file.progress() * 100) + '%');
element.render('progress', file.file.uniqueIdentifier);
//console.log('File progress', file.progress());
});
// 文件上传成功时触发
r.on('fileSuccess', function(file, message){
// console.log('File uploaded successfully', file, message);
let obj = JSON.parse(message)
console.log("新的文件名：" + obj.data)
$("."+file.file.uniqueIdentifier).removeClass('layui-hide').data('filename',obj.data)
$("#"+file.file.uniqueIdentifier).val(obj.data)
});
// 文件上传失败时触发
r.on('fileError', function(file, message){
console.log('File upload error', file, message);
});
$(document).on("click",".del_file",function(){
console.log("ok")
let _this = $(this)
let fileName = $(this).data('filename')
$.get("/adm/delFile",{fileName},function(res){
_this.parents('tr').remove();
})
return false;
})
function getfilesize(size) {
if (!size)
return "";
var num = 1024.00; //byte
if (size < num)
return size + "B";
if (size < Math.pow(num, 2))
return (size / num).toFixed(2) + "K"; //kb
if (size < Math.pow(num, 3))
return (size / Math.pow(num, 2)).toFixed(2) + "M"; //M
if (size < Math.pow(num, 4))
return (size / Math.pow(num, 3)).toFixed(2) + "G"; //G
return (size / Math.pow(num, 4)).toFixed(2) + "T"; //T
}
});
</script>
